[ ERM ] How do I adjust the UI scale for ERM (Edge Recording Manager) in Windows 10 and 11? DPI, Monitor - 20230911

[hugh]

Question:
How do I adjust the UI scale for ERM (Edge Recording Manager) in Windows 10 and 11?

Answer:

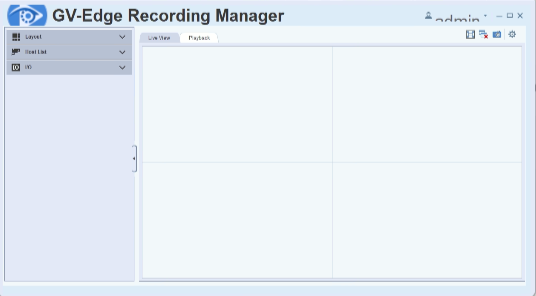

Before adjusting the UI scale in the 4K resolution with 300% scale.

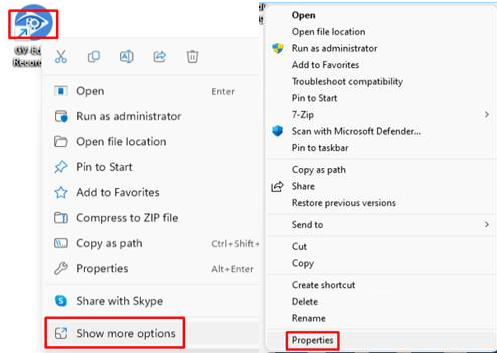

1. Now Right click on the GV-Edge Recording Manager from the desktop. Then click Show more options, then click Properties.

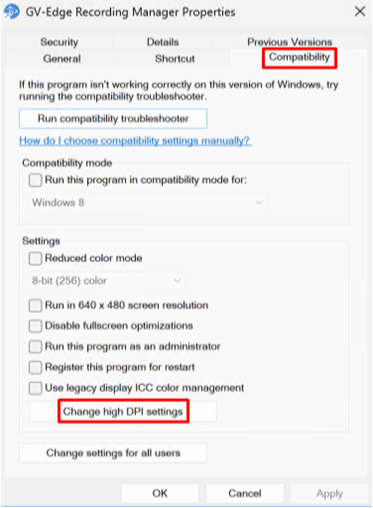

2. Click on the Compatibility tab, then click Change high DPI settings.

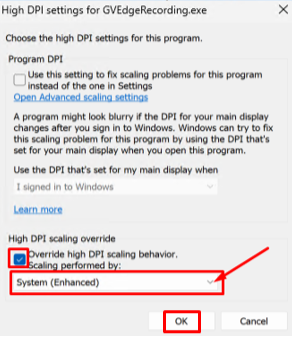

3. Checked the Override high DPI scaling behavior box and selected System (Enhanced), then clicked OK, as shown in the picture below.

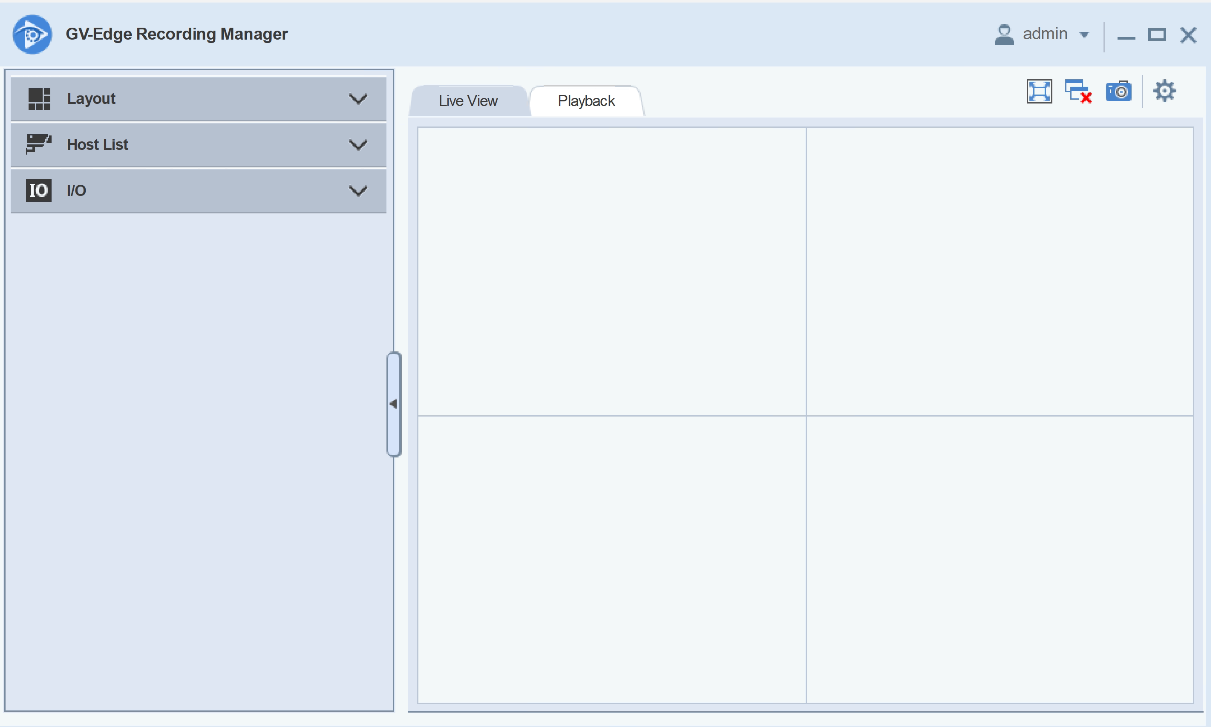

4. See the picture below after adjusting the result.
