Release Date: April 6, 2022
Applied to
GV-IP Cameras & UA-IP Cameras::
- GV-ABL / TBL Series
- GV-ADR / TDR Series
- GV-AVD / TVD Series
- GV-BLFC5800
- GV-BX2802 / 4802
- GV-EBD Series
- GV-EBFC5800
- GV-FER5702
- GV-PBL8800
- GV-PDR8800
- GV-PTZ5810-IR
- GV-SD2322-IR / SD2722-IR / SD3732-IR / SD4825-IR / SD4834-IR
- UA-B20004F / B40004F / B4000VF-S
- UA-D20002F / D40002F / D4000VF-S
- UA-R40002F-SA
- UA-B580F3
- UA-R500F2 / R560F2 / R580F2 / R800F2
- UA-SNVRL810-P (earlier than V1.10)
- UA-SNVR1620-P (earlier than V1.10)
- UA-XVL810 / XVL1610 (earlier than V1.10)
- UA-XVR810 (earlier than V1.10)
This document illustrates detailed instructions for connecting the abovementioned IP cameras on UA-HD DVR / SNVR.
Manually connecting IP cameras

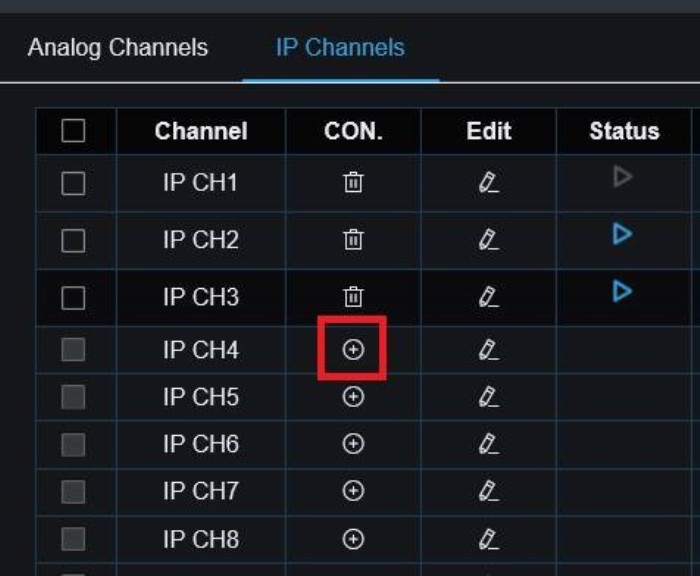

- On UA-HD DVR / SNVR, select Remote Setting > Channel > IP Channels. Click the Add button.
- 01.jpg (58.55 KiB) Viewed 12344 times

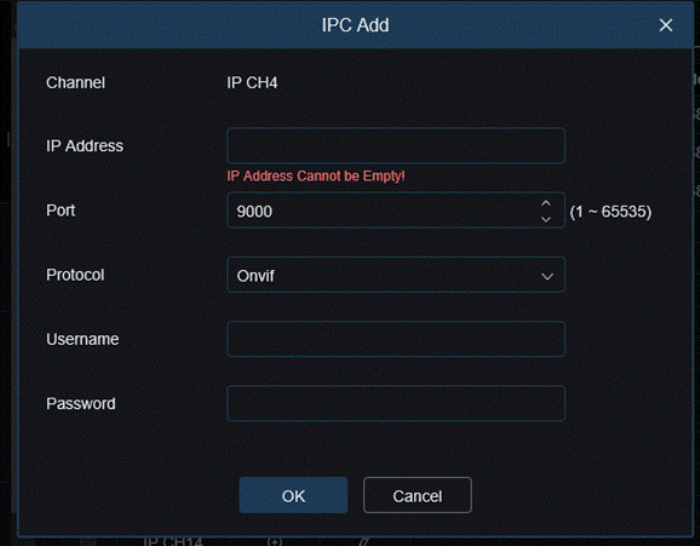

- Fill in the following information on the popup window:
- Type IP Address of the camera
- For Port, type 80 for GV-IP Cameras & UA-IP Cameras and 9000 for Other UA-IP Cameras
- For Protocol, select ONVIF for GV-IP Cameras & UA-IP Cameras and Private for Other UA-IP Cameras
- Type ID (Username) and Password of the camera
- 02.png (686.81 KiB) Viewed 12344 times
- Click OK.

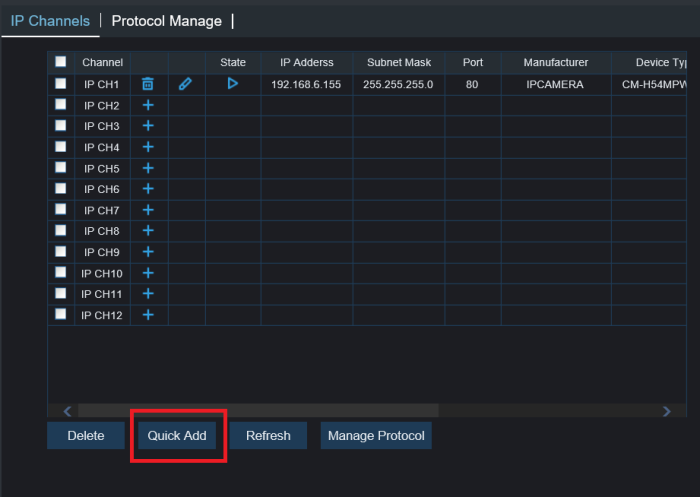

- On UA-HD DVR / SNVR, select Remote Setting > Channel > IP Channels. Click Quick Add. IP cameras under the same LAN appear.
- 03.png (55.71 KiB) Viewed 12344 times

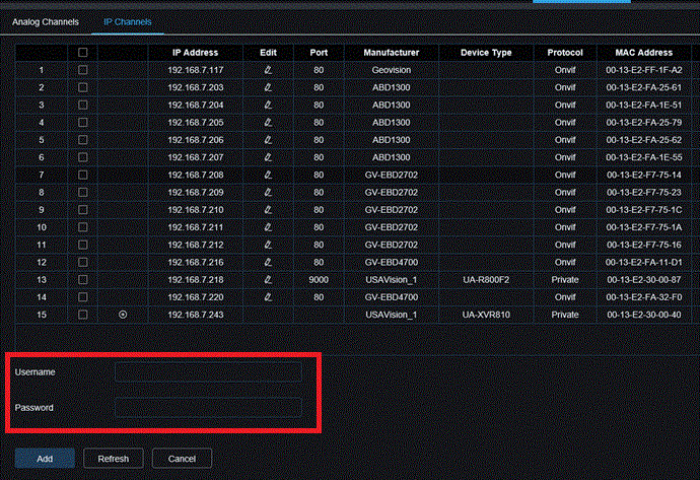

- Select the camera you wish to connect and type the ID (Username) and Password.
- 04.png (833.94 KiB) Viewed 12344 times
- Click Add.
