Question:
AS4110 can’t be detected in network
Root of cause:
SD card might need to repair for some reason (power failure....), controller will try to repair it when power on, but controller seems stuck in initial process to check SD card, it cause network connection not stable
Symptom
- Controller not stable in network
- Controller will display after one hour power on (it might take one hour for repairing, you'll see it after repair done)
Resolution:
Remove controller’s SD card before power on, it’ll bypass repair process, start up controller in quick process

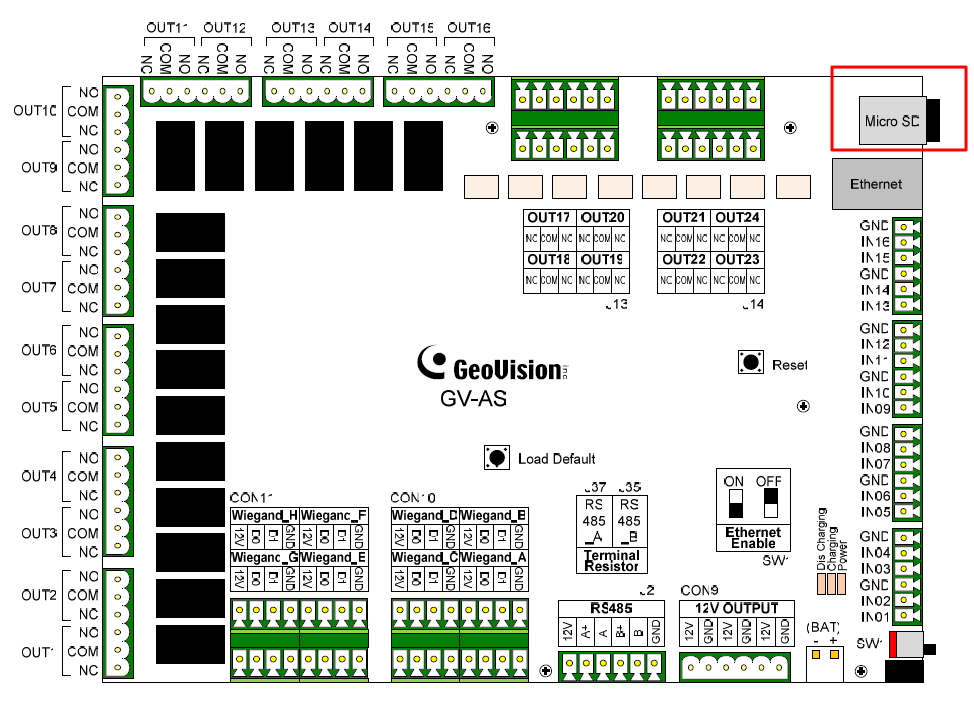

- 410810controller_sdcard.jpg (408.97 KiB) Viewed 2225 times
- power off controller
- remove SD card from controller's board SD card slot
- power on controller
- login controller's IP(you can search it by GV network module utility)

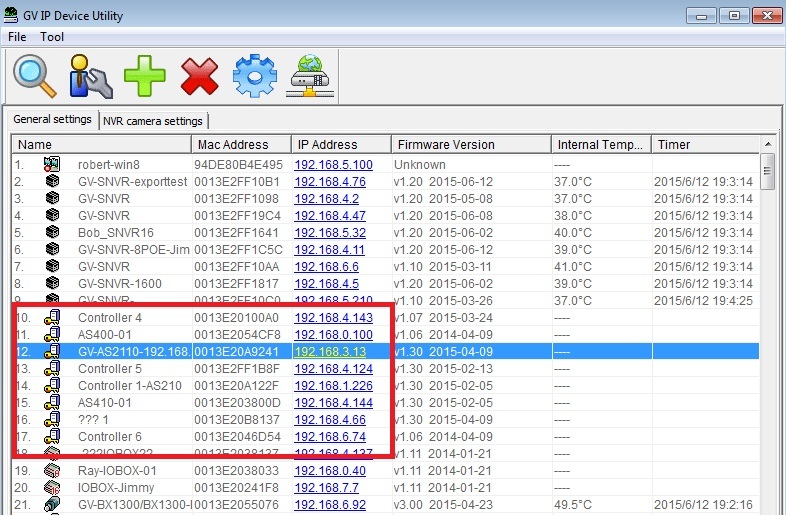

- controller_search1.jpg (192.17 KiB) Viewed 2225 times

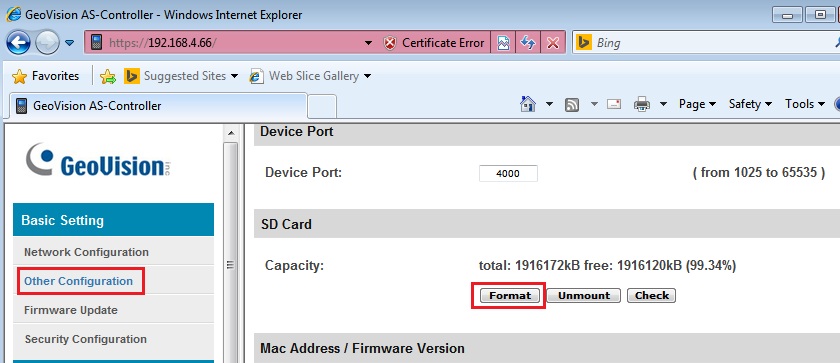

- controller_sd_card.jpg (82.94 KiB) Viewed 2225 times
Reference:
201506162003 [ Access Control - Controller ] Lock Connection with AS4110 fail
Controller_Problem_after_FW_Upgrade.pdf- (199.84 KiB) Downloaded 2189 times
