Release Date: Dec. 12, 2025
Applied to
HD DVR: GV-TXVL1610, UA-XVL Series
Symptom
The exported video from cameras set to 4 MP / 5 MP / 8 MP Lite resolution is displayed vertically instead of horizontally. For example:
• 4 MP Lite: shows 1280 × 1440 instead of 1440 × 1280
• 5 MP Lite: shows 1440 × 1620 instead of 1620 × 1440
• 8 MP Lite: shows 1920 × 2160 instead of 2160 × 1920
Solution

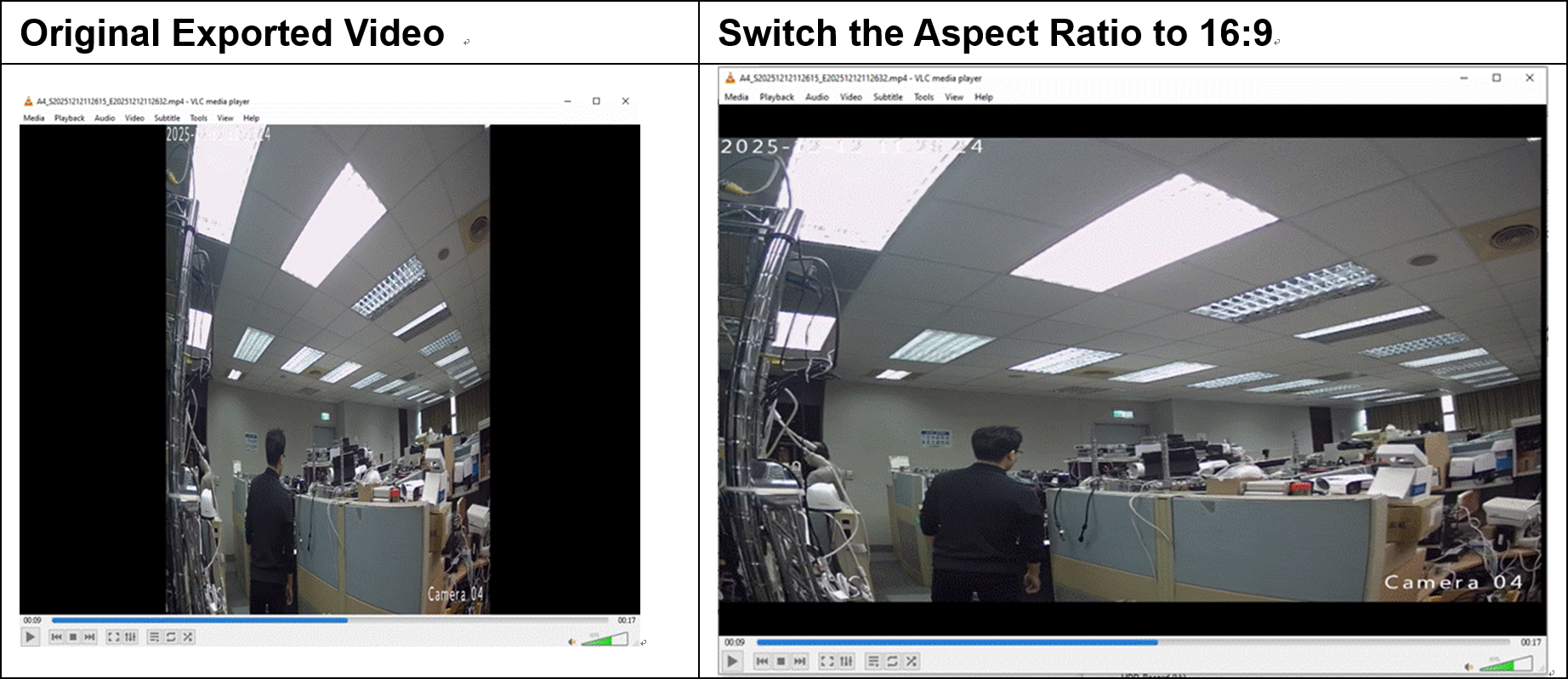

To resolve the above symptom when playing back exported videos, use the Aspect Ratio setting in a media player (such as VLC, KMPlayer, or PortPlayer) and switch to the desired ratio of 16:9 or 4:3.

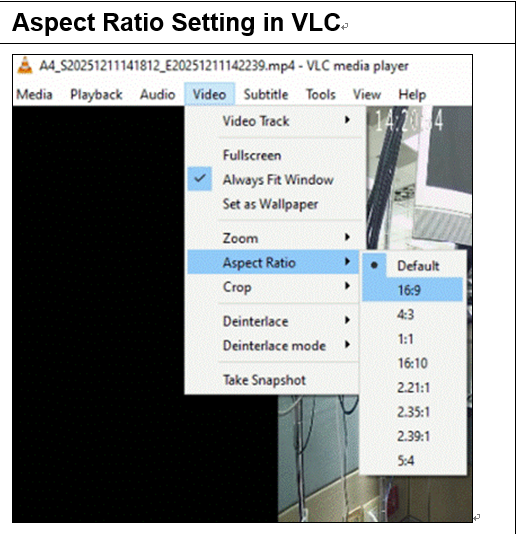

The following example uses VLC for illustration.
- 2025-12-12_13h52_15.png (354.04 KiB) Viewed 5399 times
- 2025-12-12_13h46_29.png (2.24 MiB) Viewed 5401 times
