For the SNVR3203, SNVR6403, and RNVR256G0-N, if you were to fill up the systems to their max supported number of channels with 8MP IP cameras (at 10 FPS), will it work?
Answer:
Camera video decoding (display) and recording bandwidth limits have different specifications.

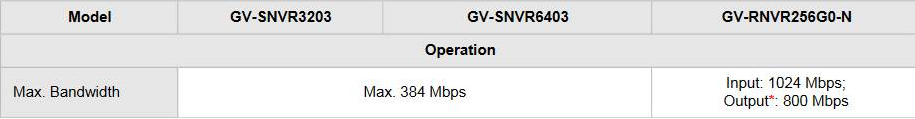

SNVR3203/6403/RNVR256G0-N can support up to 12MP (4000 x 3000) per 1CH, as long as the total bandwidth of the connected cameras does not exceed the following Max. Bandwidth, then it is supported.
- 2024-05-13_15h23_41.png (63.69 KiB) Viewed 2113 times
https://gv.geovision.tw/FAEProd/Customer.aspx
*User can also check the actual camera bandwidth connected to SNVR by referring to the following article:
viewtopic.php?t=2718

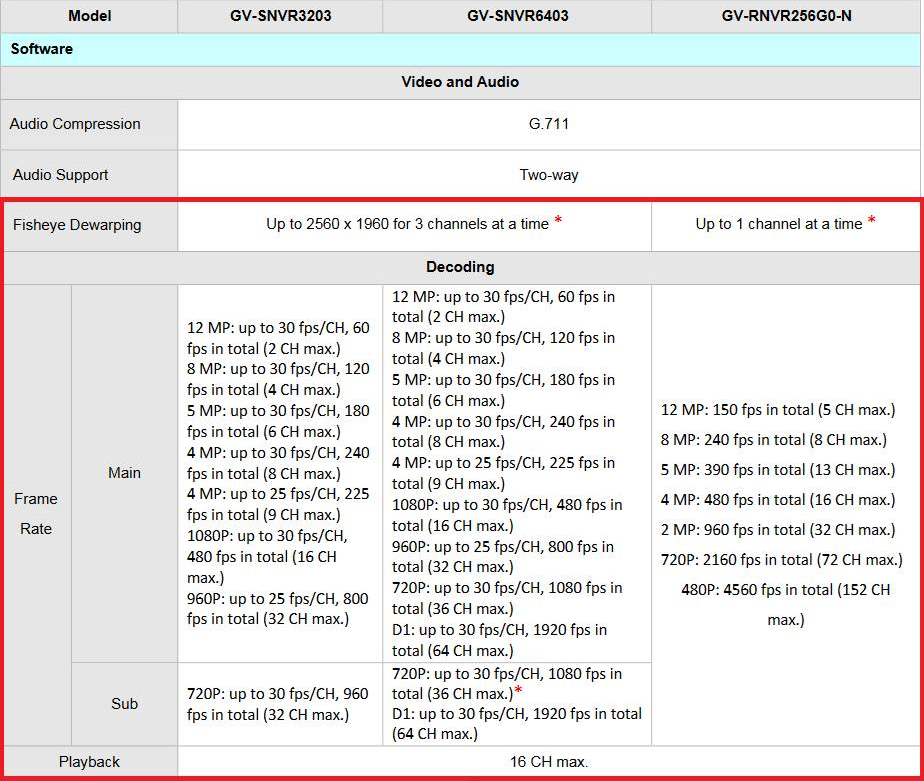

For Camera video decoding (display) and playback limitations, please refer to the red square highlighted area in the table below.
- 2024-05-13_15h24_58.png (559.99 KiB) Viewed 2113 times
