Introduction
When the thermal camera GV-TMEB5800 is integrated with GV-VMS, its temperature readings can be shown on the thermal channel.
How to
To display the temperature on GV-VMS, first set up the thermography rules on the camera.
On the Camera

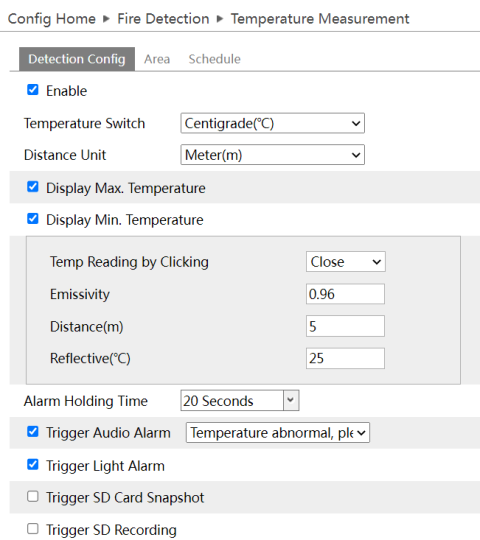

- To trigger alarms or system actions when the temperature detected exceeds the threshold value, enable Detection Config (Config > Fire Detection > Temperature Measurement), and select desired settings.
- 1.png (58.82 KiB) Viewed 2037 times

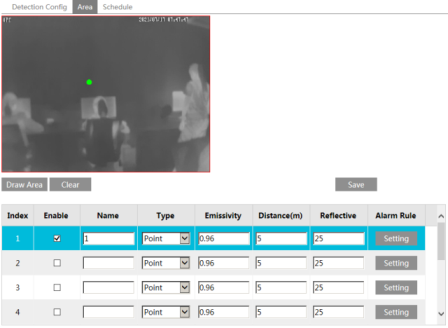

- To set a thermography rule, select Area. This dialog box appears.
- 2.png (46.45 KiB) Viewed 2037 times
- Configure one of the three thermography rules (Point, Line or Area), draw an area on the image and enable the settings. For details, see 4.2 Temperature Measurement in the user’s manual.
On GV-VMS
- Select Home > Toolbar > Configure > Video Process. The Setup dialog box appears.

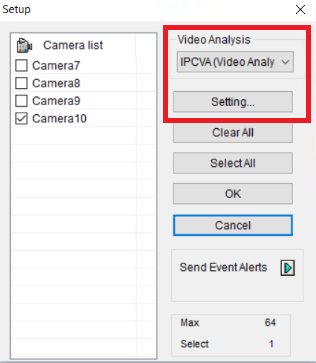

- Select IPCVA under Video Analysis, select the thermal camera, and click Setting.
- 3.png (28.4 KiB) Viewed 2037 times

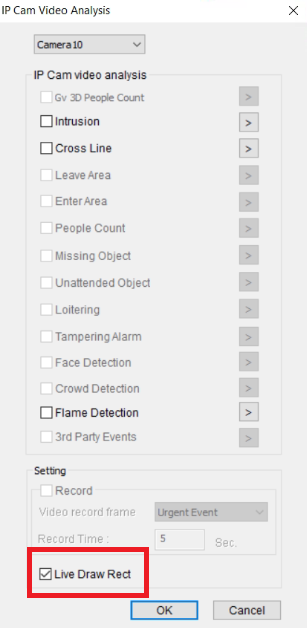

- Select Live Draw Rect. Click OK and return to the main screen.
- 4.png (49.57 KiB) Viewed 2037 times

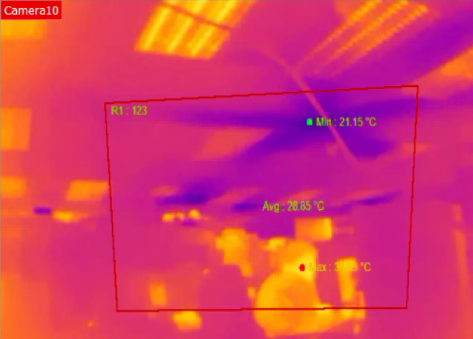

- Start monitoring. The thermal channel now displays the detection area and temperature readings.
- 5.png (271.07 KiB) Viewed 2037 times
- To view temperature readings on any region of the image, click the Tools icon on the channel, select Measure Temperature, and then click anywhere on the image. Note that the Temp Reading by Click function (see Step 1) on the camera must be enabled first.
- 6.png (13.39 KiB) Viewed 2037 times
To see the demo video of enabling temperature measurement and detection on GV-VMS, check our YouTube channel.
