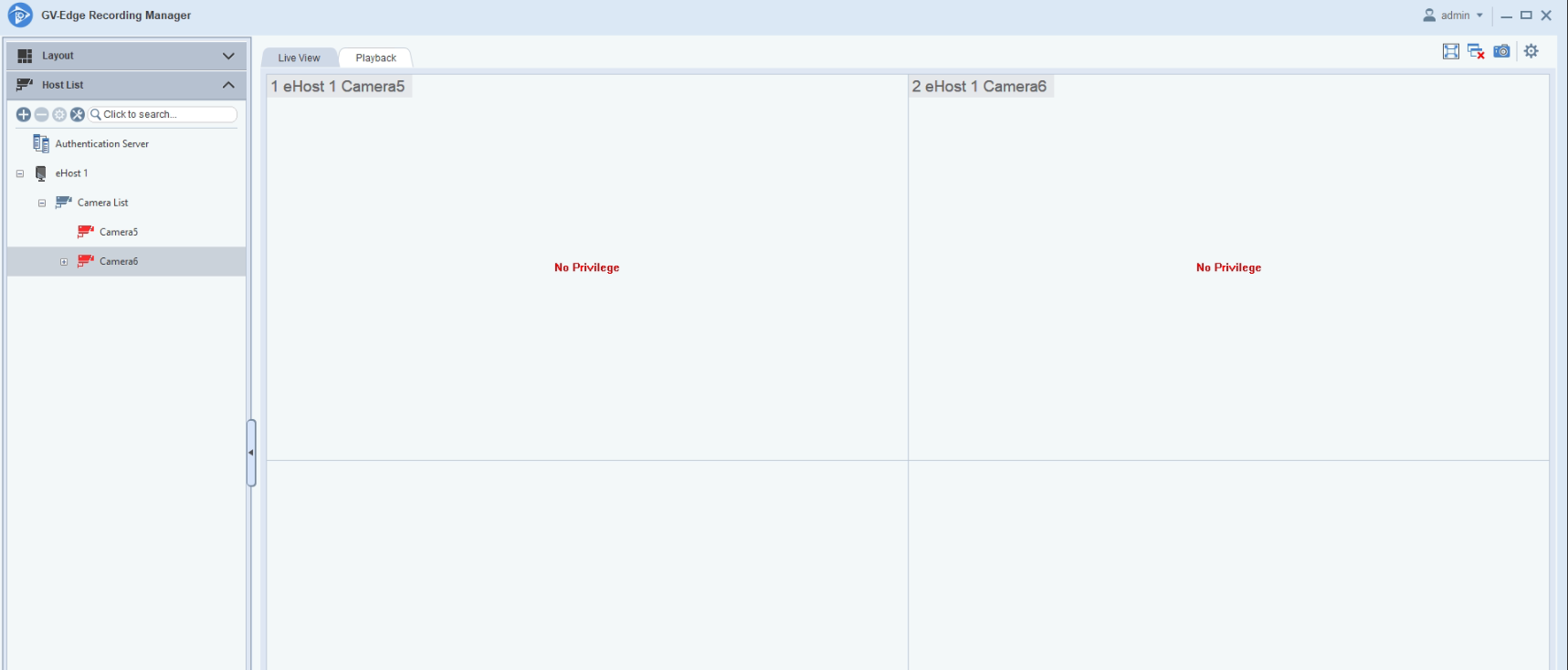

Why are cameras from the VMS not showing up in the ERM on a specific day?
Answer:
This problem occurs if the VMS monitoring mode is scheduled but a specific day does not tick in the schedule Edit Weekly option or ERM Connection does not select from the Schedule Plan.
- 12.png (60.54 KiB) Viewed 56503 times
Follow the steps listed below as a guide:

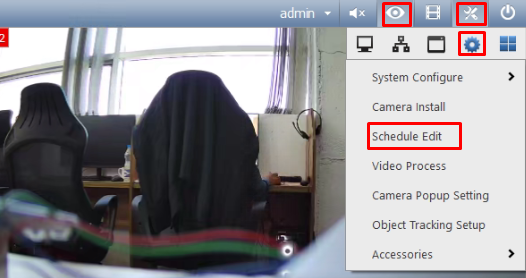

1. Go to >>Home >>Toolbar >>Configure >>Schedule Edit
- 1.png (180.55 KiB) Viewed 56535 times

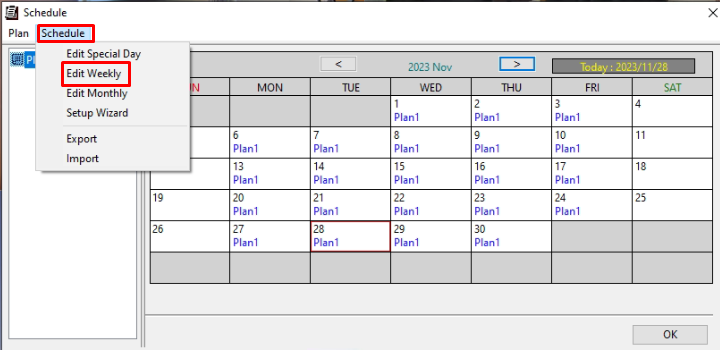

2. Go to >>Schedule >>Edit Weekly
- 2.png (50.05 KiB) Viewed 56535 times

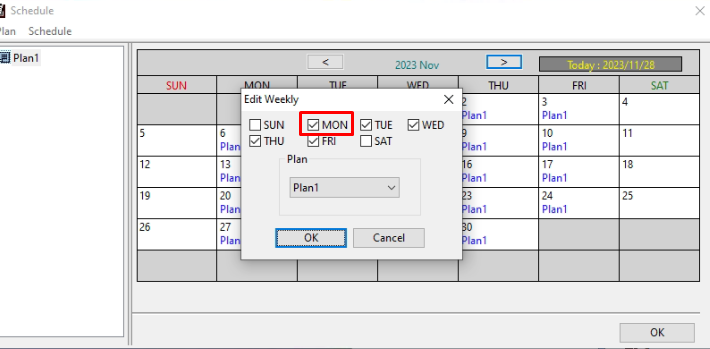

3. Check that the specific date is ticked. Then OK.
- 3.png (44 KiB) Viewed 56535 times

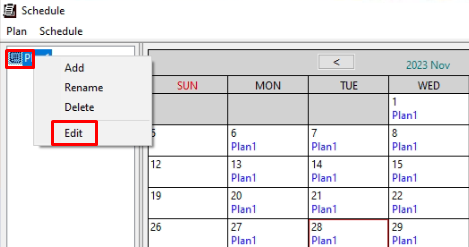

4. Right-click on the Plan and Click Edit
- 4.png (25.64 KiB) Viewed 56535 times

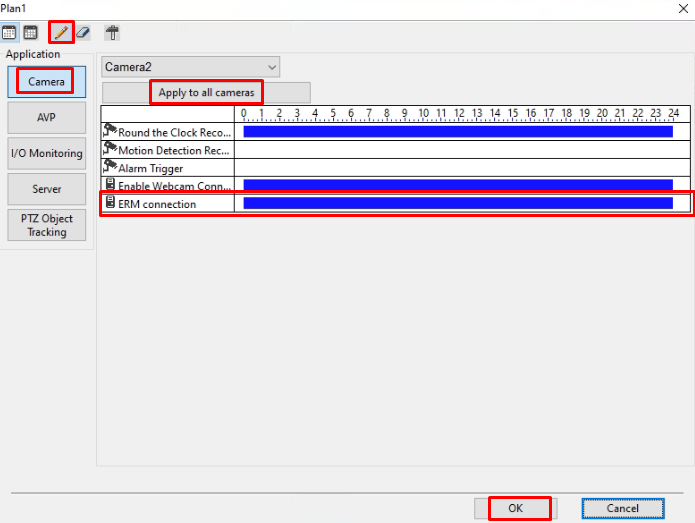

5. On the Camera Tab, the ERM connection needs to be marked. Apply it to all cameras, then click OK.
- 5.png (52.11 KiB) Viewed 56535 times
6. Go to the Central Management System >>setting option from the right bottom side of the taskbar.
- 6.png (18.24 KiB) Viewed 56535 times

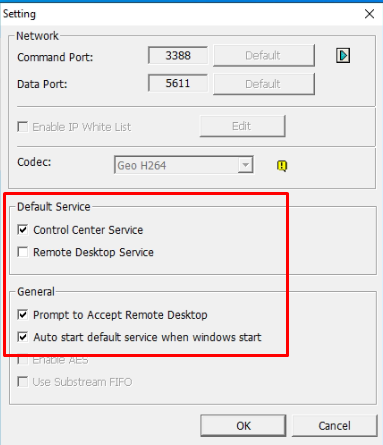

7. Check and tick as shown in the below picture. Click OK.
- 7.png (37.57 KiB) Viewed 56535 times

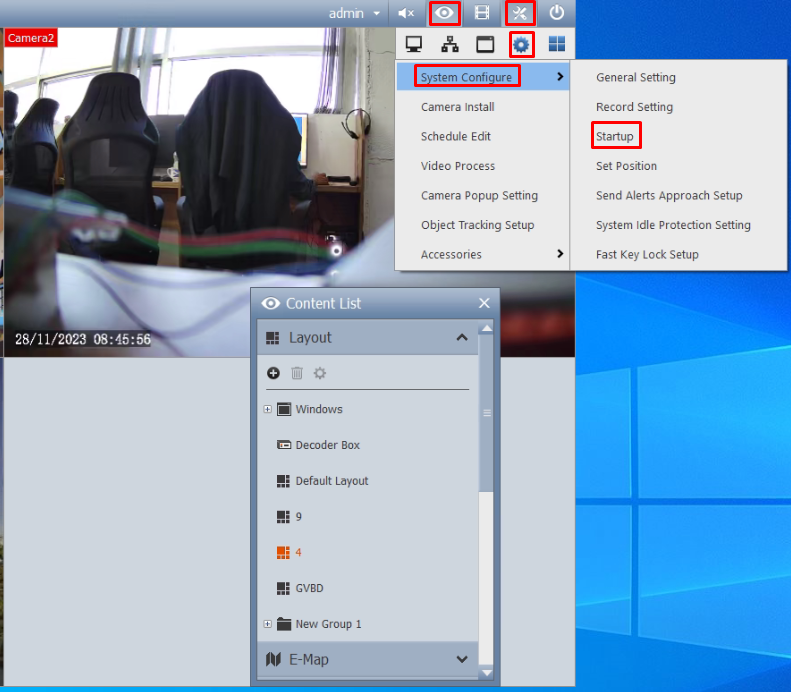

8. Also, check the startup option in the VMS.
- 8.png (421.92 KiB) Viewed 56535 times

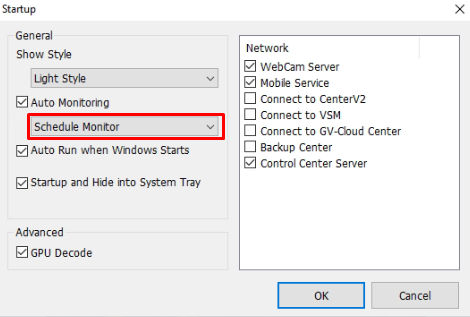

9. Ticked as shown in the below picture. Click OK.
- 9.png (40.05 KiB) Viewed 56535 times
