[ ASManager ] ASManager, fire alarm, people list in the building - 20230204

[Frank]

Questioin:
How do I get a list of people in the building when fire alarm occurs?

Answer:

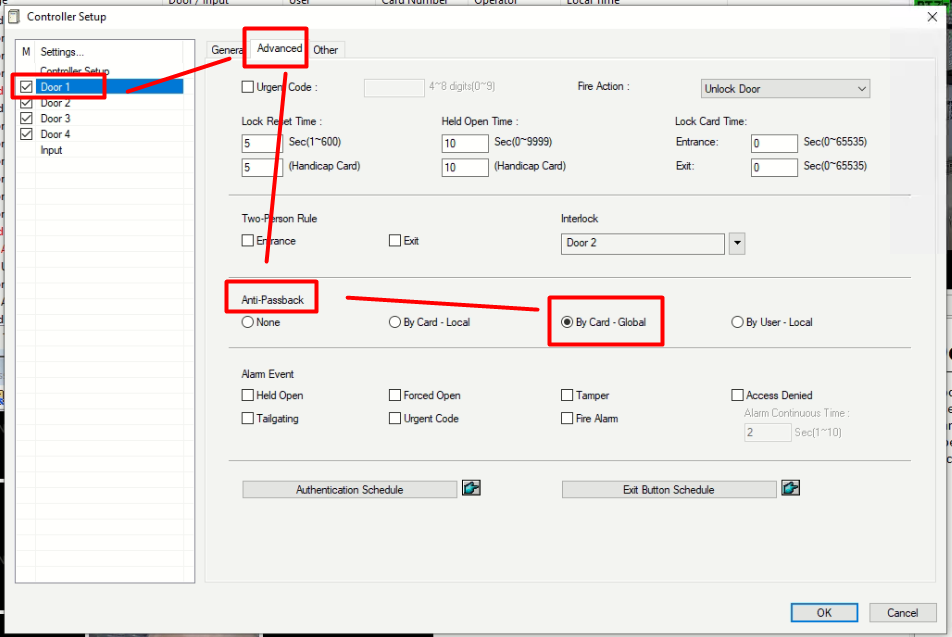

1. ASManager >> Controller Setup >> Select door >> Advance Tag >> check " By Card - Global " in Anti-Passback

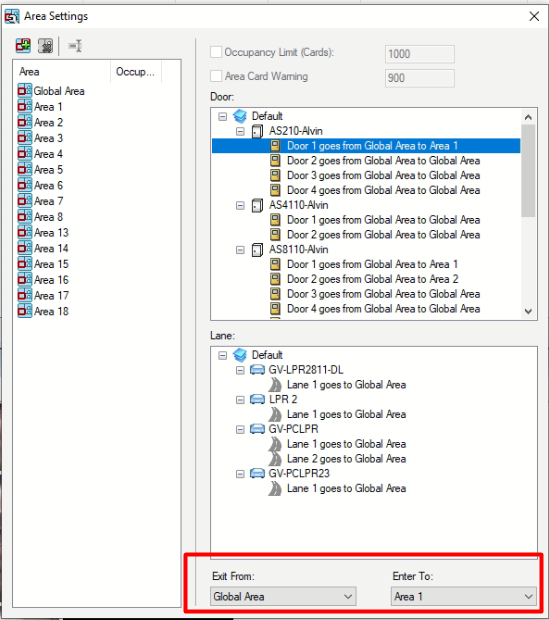

2. Go Setup >> Area to setup each door's region

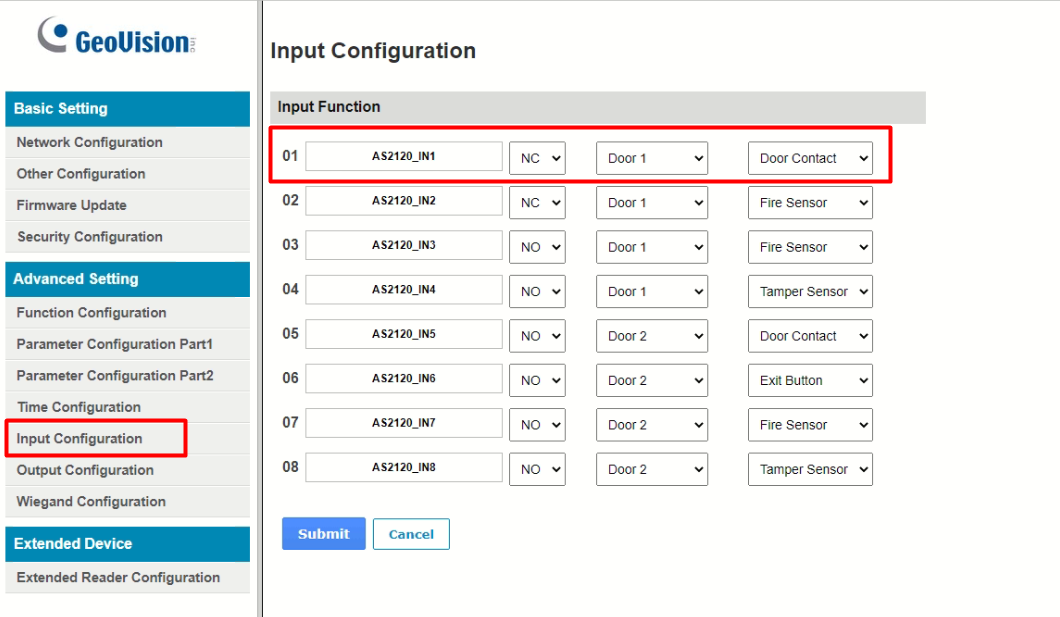

3. Then go to controller's web UI >> Advance Setting >> Input Configuration >> Select Door Contact for that door

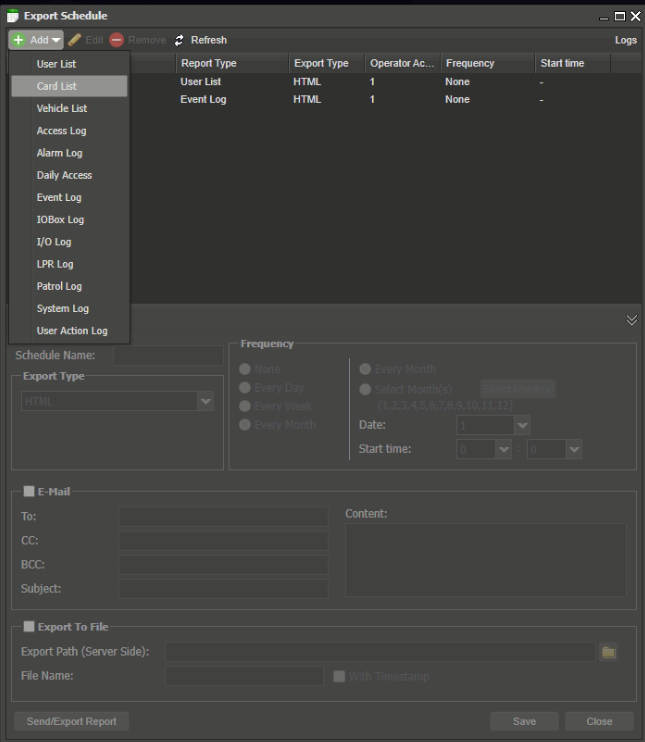

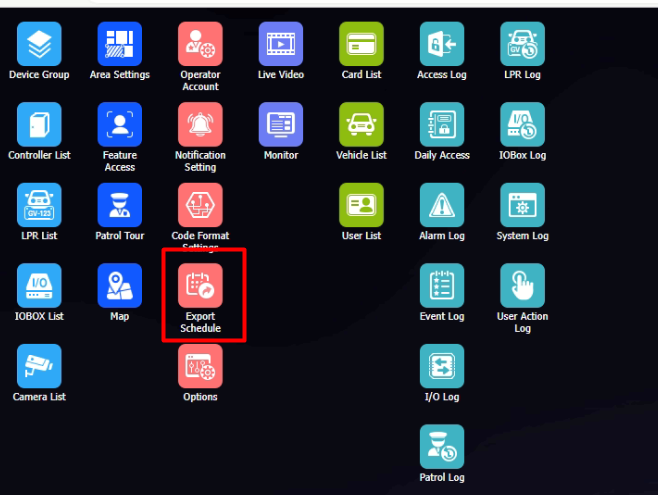

4. Then go to ASWeb UI >> Export Schedule

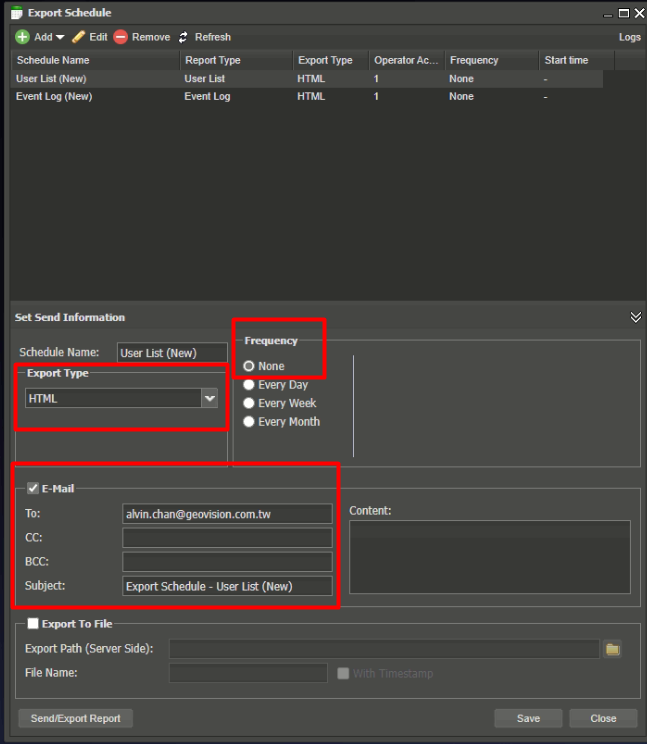

5. Add User List and Event Log

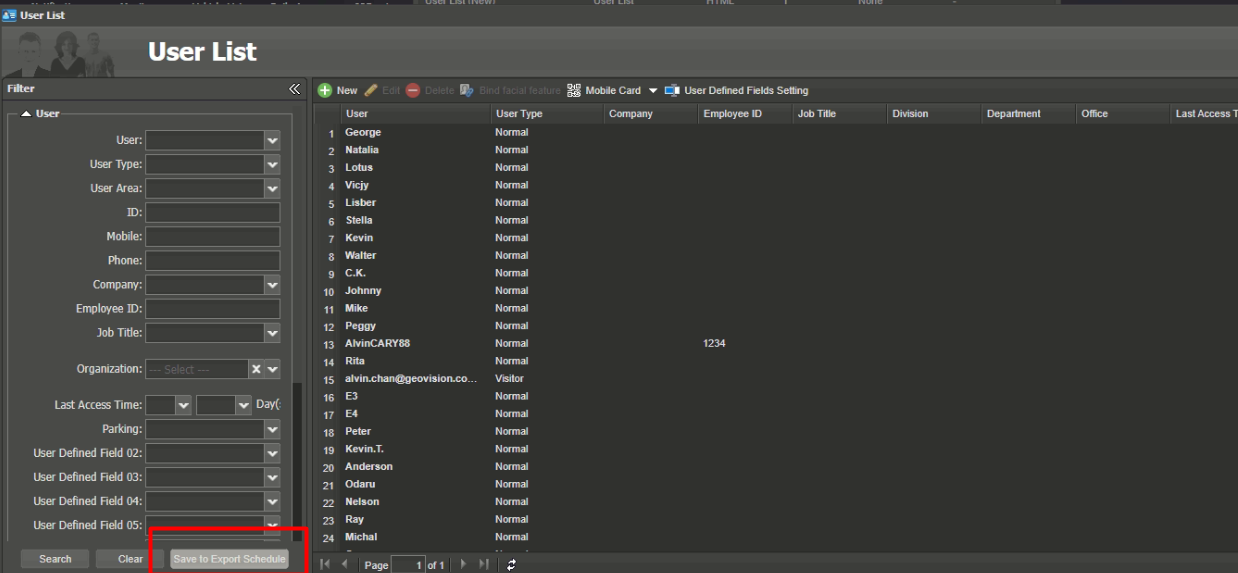

No need to type anyting. Just click " Save to Export Schedule " to create an User List.


Make sure you have filles in the email configuration, Frequency and export type.

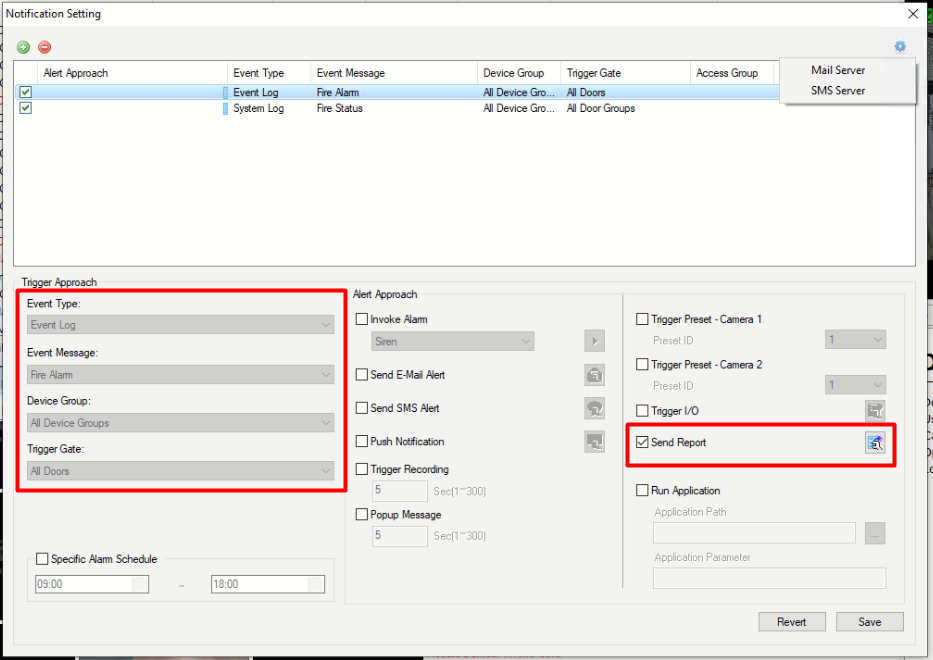

6. After all, go back to ASManager >> Tool >> Notification Setting >> Press + button
- Event Type selects Event log
- Event Message selects Fire Alarm
- Device Group selects All groups
- Door selects All doors


7. Then check " Send Report " >> click the button right next to this option. Check the following.
- User List
- Event Log

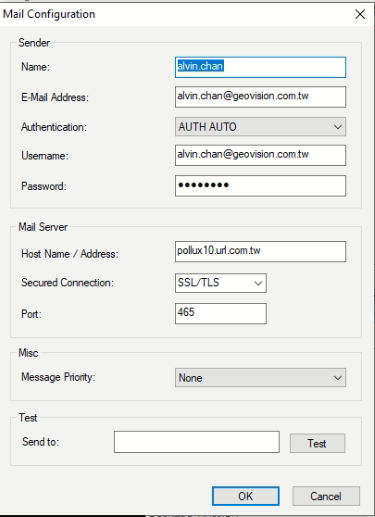

8. Please also remember to setup the email configuration in ASManager. Tools >> Email Server Setup..

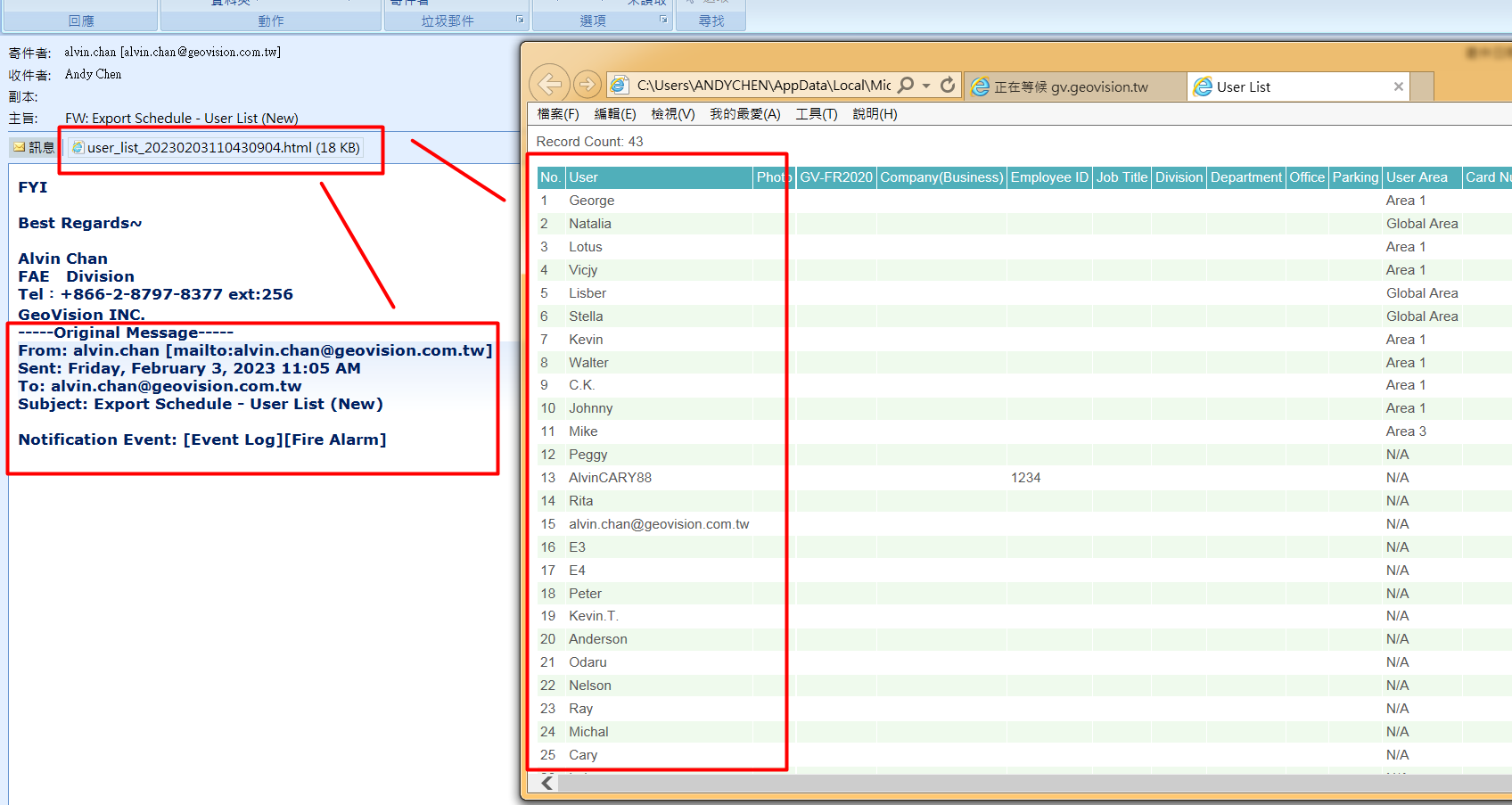

9. After all, once the fire is on, the user list will be sent to you. This is the email sample of what it looks like.



Reference:
[ WEU - 202301195001 ] ASManager, send mail notification
