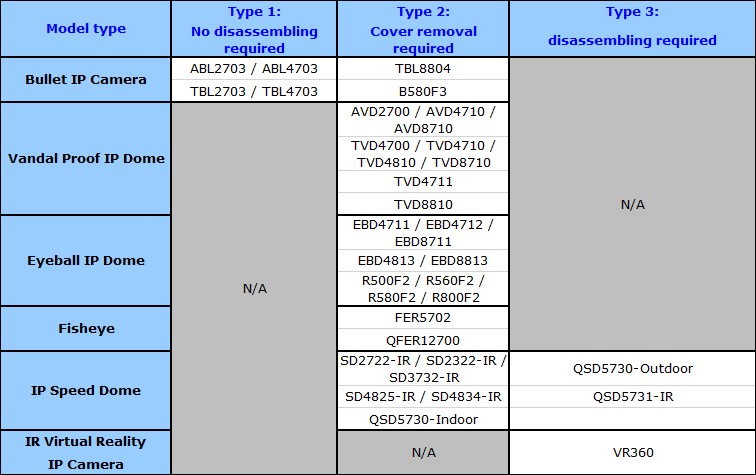

we can separate them into the following types when attempting to reload
the camera back to factory default.
- gv_disassembling_table.jpg (78.66 KiB) Viewed 3976 times

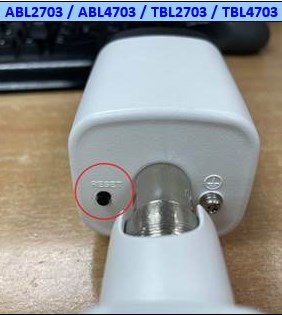

Type1: No disassembling required
Bullet IP Camera
- GV-ABL2703 / ABL4703
- GV-TBL2703 / TBL4703
Press the Default button as highlighted for 15 seconds or longer
- default-abl.jpg (21.22 KiB) Viewed 3976 times

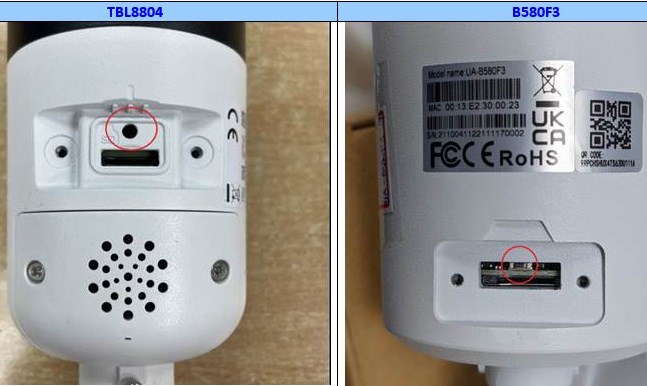

Type2: Cover required
Bullet IP Camera
- GV-TBL8804
- GV-B580F3
1. Remove bottom waterproof cover
2. Press the Default button as highlighted for 15 seconds or longer
- default_abl2.jpg (51.82 KiB) Viewed 3976 times

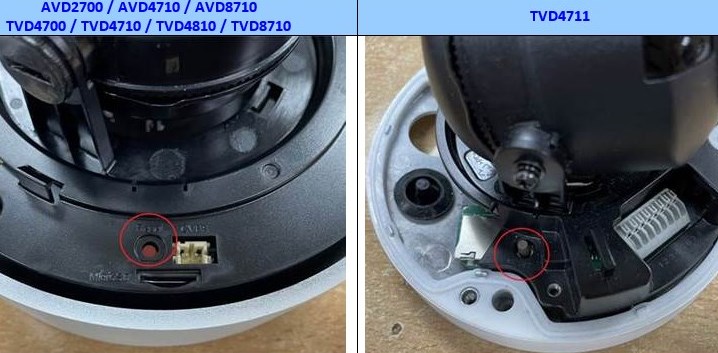

Vandal Proof IP Dome
- GV-AVD2700 / AVD4710 / AVD8710
- GV-TVD4700 / TVD4710 / TVD4810 / TVD8710
- GV-TVD4711
- GV-TVD8810
Steps:
1. Remove upper waterproof cover
2. Press the Default button as highlighted for 15 seconds or longer

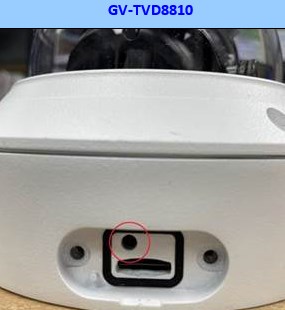

For TVD8810
1. Remove side waterproof cover
2. Press the Default button as highlighted for 15 seconds or longer
- default_van1.jpg (67.89 KiB) Viewed 3976 times
- default_van2.jpg (16.53 KiB) Viewed 3976 times

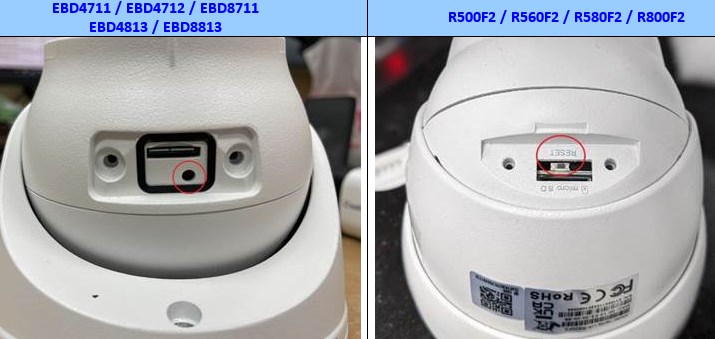

Eyeball IP Camera
- GV-EBD4711 / EBD4712 / EBD8711
- GV-EBD4813 / EBD8813
- GV-R500F2 / R560F2 / R580F2 / R800F2
1. Remove bottom waterproof cover
2. Press the Default button as highlighted for 15 seconds or longer
- default-eye1.jpg (50.81 KiB) Viewed 3976 times

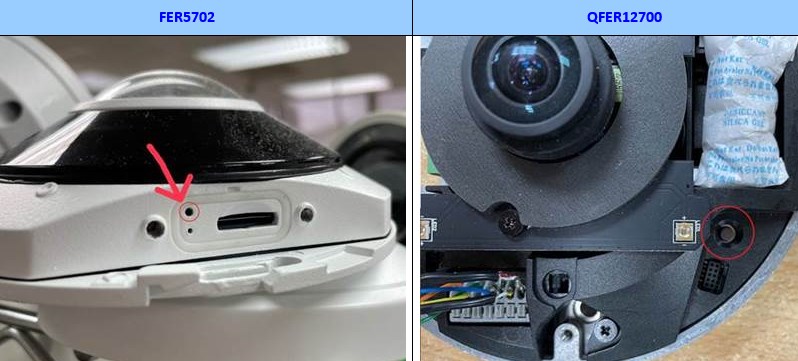

IR Fisheye Rugged IP Camera
- GV-FER5702
- GV-QFER12700
Steps:
For FER5702
1. Remove ring cover
2. Remove waterproof cover
3. Press the Default button as highlighted for 15 seconds or longer
For FER5702
1. Upper cover
2. Press the Default button as highlighted for 15 seconds or longer
- default-fe.jpg (68.24 KiB) Viewed 3976 times

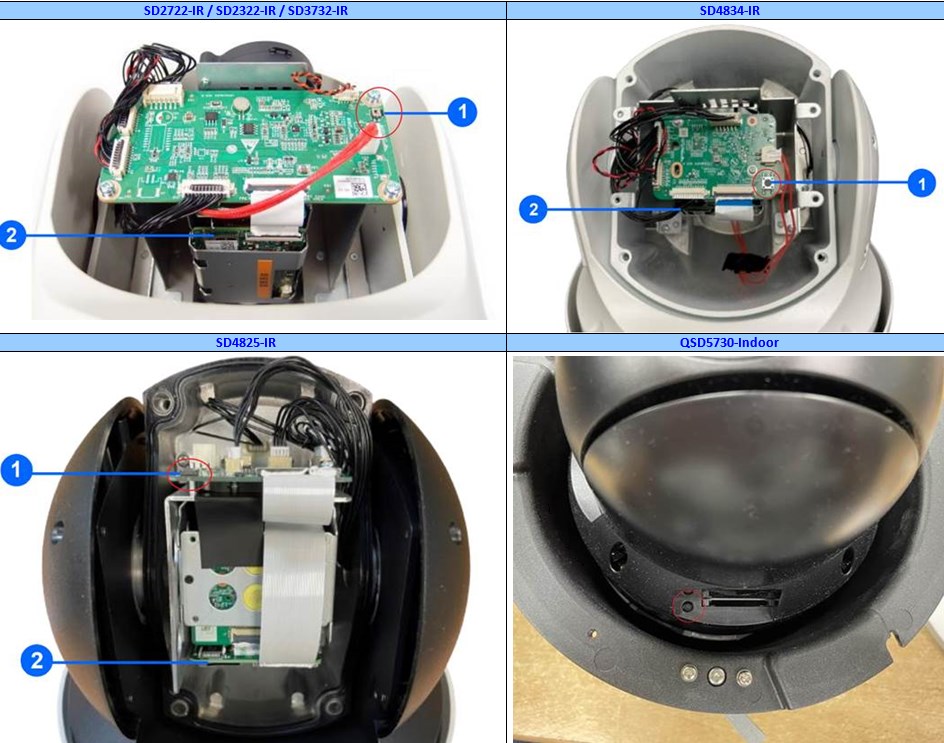

IP Speed Dome
- GV-SD2722-IR / SD2322-IR / SD3732-IR
- GV-SD4825-IR / SD4834-IR
- GV-QSD5730-Indoor
*!!*Note: Before attempting, disable any tour and prevent the camera from performing pan/tilt/zoom to avoid damaging the camera while!!
Steps:
1. Remove back mechanism and cover
2. Press the Default button as highlighted for 15 seconds or longer
For QSD5730-Indoor
1. Remove Ceiling-Mount kit
2. Press the Default button as highlighted for 15 seconds or longer
- default-sd1.jpg (145.09 KiB) Viewed 3976 times
Type3: disassembling required

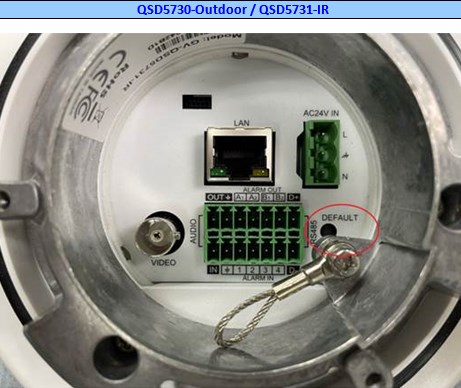

IP Speed Dome
- GV-QSD5730-Outdoor / QSD5731-IR
Steps:
1. Remove the speed dome unit from the mount
2. Default button is located at the bottom of the unit
3. Power on and then press the Default button as highlighted for 15 seconds or longer
- default-qsd.jpg (47.66 KiB) Viewed 3976 times

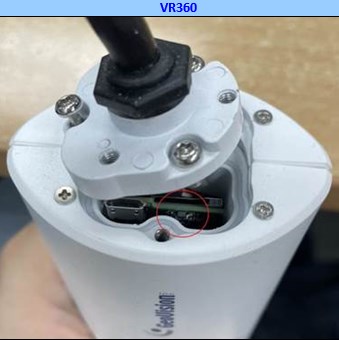

IR Virtual Reality IP Camera
- GV-VR360
1. Remove the camera unit from the mount
2. Lossen the screws at the bottom of the unit to locate the default button
3. Power on and then press the Default button as highlighted for 15 seconds or longer
- default-vr3600.jpg (21.5 KiB) Viewed 3976 times
For other models, users may refer to the attached document provided below.
GV-IP Cameras_Load_Default.pdf- (3.69 MiB) Downloaded 455 times
