[ LPR ] How to use LPR2800/2811-DL Smart Event to push recognized plate information to a JSON Server? - 20211221

[support]

Question:
How do I set up Smart Event push notification of LPR2800/2811-DL with plate information to a JSON Server?

Answer:
1. Build up a JSON Server using the attached sample file.

LPR2800-DL and LPR2811-DL for JSON Server example.pdf

(38.58 KiB) Downloaded 478 times

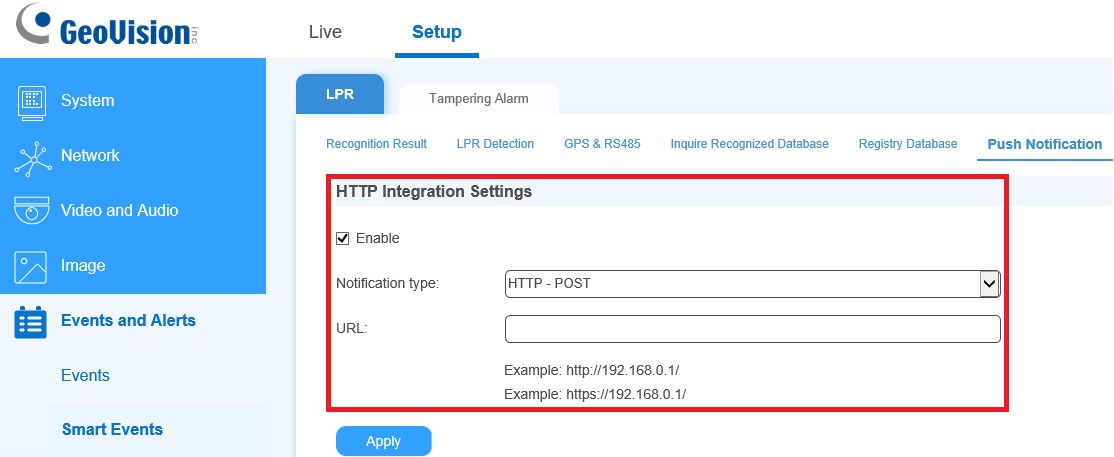

2. From LPR2800/2811-DL web UI, go to Event and Alerts -> Smart Event -> Push Notification -> HTTP-POST.
3. Enter JSON Server URL IP address and click on Apply.


When complete, LPR2800/2811-DL can then send recognized plate information to a JSON Server
