[ Storage System ] How to specify an Ethernet card to connect to GV-Storage System? - 20211220

[support]

Issue:
My system has multiple Ethernet cards, is it possible to specify only one to connect to GV-Storage System?

Solution:
1. Lauch Windows iSCSI Initiator

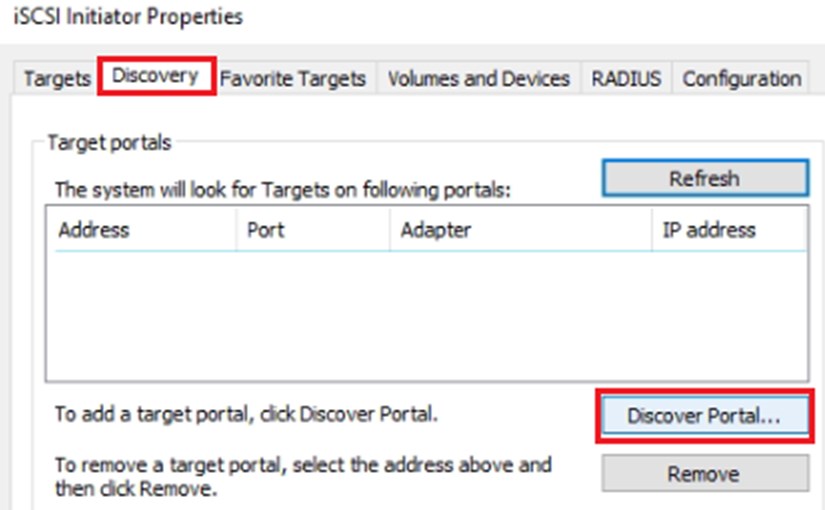

2. Under Discovery tab, Click on Discover Portal.

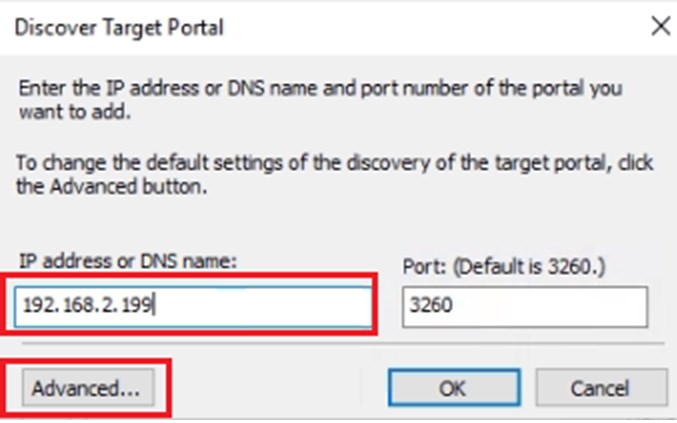

3. Enter LAN IP address of Storage system and click on Advance.

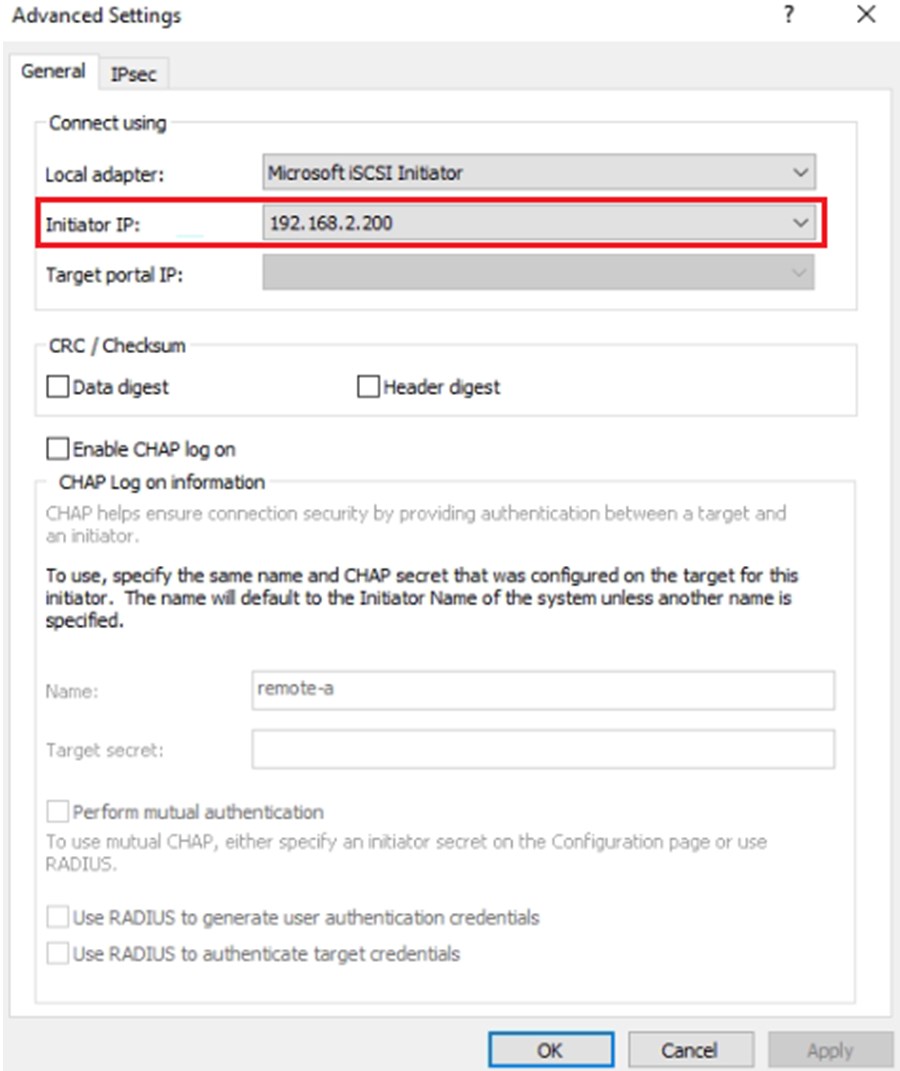

4. Enter the specific Ethernet card LAN IP (same IP range recommended as shown in the screenshot) and select OK.

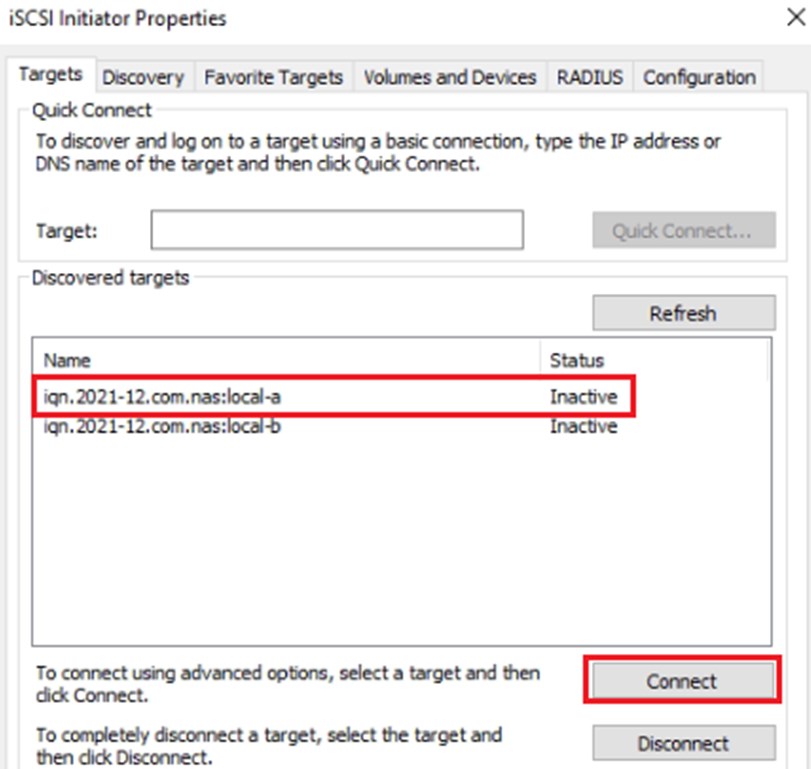

5. Switch back to Targets tab, select and connect the desire target.
