[Specification Change Notice] GV-Hot Swap Surveillance System V5 Changes

[alicelin]

Article ID: GV5-18-10-03
Release Date: 10/03/2018

Applied to
GV-Hot Swap Surveillance System V5 (Rev. E): 3U, 16 / 8-bay and 4U, 20-bay

Description of Changes
The following changes will be made to GV-Hot Swap Surveillance System V5 (Rev. E):

• Support for highly efficient H.265 GPU decoding with Intel Coffee Lake platform.

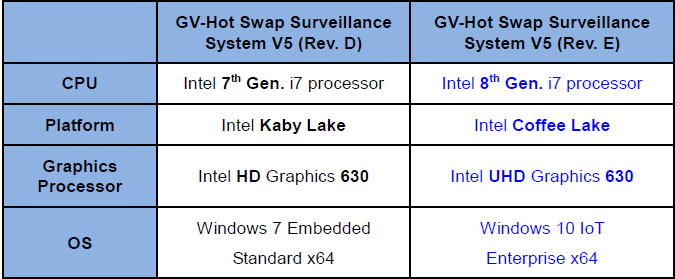

• All models of GV-Hot Swap Surveillance System V5 (Rev. E) will be equipped with more advanced processing technologies as shown below.




CPU & GPU Benchmarks
GV-Hot Swap Surveillance System V5 (Rev. E), with Core i7, Coffee Lake platform, has higher CPU & GPU benchmark scores than the previous System.

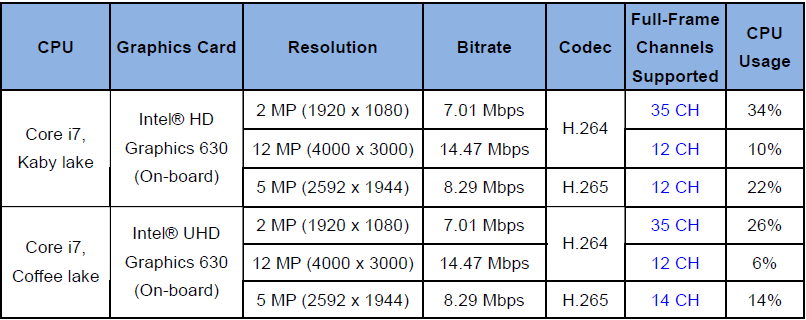

GPU Decoding Performance with Single Stream
For GPU decoding of single stream, GV-Hot Swap Surveillance System V5 (Rev. E) can support two additional channels at full frame rate using H.265 codec as compared to the previous System.
