Article ID: GV15-12-06-25-c
Released Date: 06/25/2012
Applied to
The camera models of firmware V1.09, V1.10, V1.11 and V1.12 with the new flash memory:
- GV-BL120D / 130D / 220D / 320D
- GV-BX120D / 130D Series / 140D / 220D Series / 320D Series / 520D
- GV-BX120D-E / 220D-E / 320D-E / 520D-E
- GV-CB120 / 220
- GV-CBW120 / 220
- GV-FD120D / 220D / 320D
- GV-FE420 / 421 / 520 / 521
- GV-FER521
- GV-MFD120 / 130 / 220 / 320 / 520
- GV-MDR120 / 220 / 320 / 520
- GV-VD120D Series / 220D Series / 320D Series
Due to the update of the NAND flash memory in GV-IP Camera of V1.09 and later, there is a slight chance that after reboot, your GeoVision IP camera with the new NAND flash becomes inaccessible through the Web interface or GV-DVR / NVR.
Solution
If you could not access your GV-IP Camera, follow the steps below to upgrade your camera firmware.
- Download the latest firmware according to the camera model from our website.
- Download and install GV-IP Device Utility program in the same LAN with your camera.

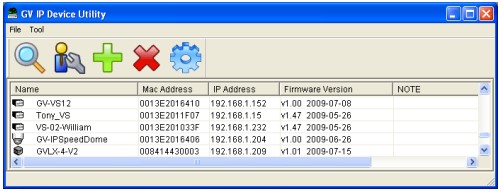

- Double-click the IP Device Utility icon created on your desktop. The program automatically searches for the GeoVision IP devices on the same LAN. This dialog box appears.
- Screenshot_1.jpg (33.7 KiB) Viewed 2547 times
- Click the Name, MAC Address or IP Address to sort.

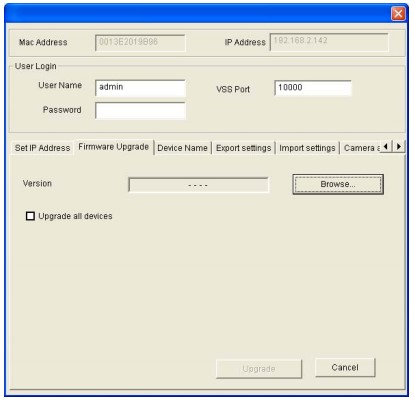

- On the GV-IP Device Utility window, click your camera and select Configure. This window appears.
- Screenshot_2.jpg (27.73 KiB) Viewed 2547 times
- Select the Firmware Upgrade tab and click the Browse button to locate the downloaded firmware file.
- Type the password of your camera and click OK to start upgrading.
