Summary
GV-AS200 Controller can work in conjunction with GV-LPR to trigger the license plate recognition and then the recognition result will be output to open a gate, turn on a light and etc.
In this application, the GV-I/O USB Box installed on GV-LPR is connected to the Door A outputs on the GV-AS200 module. When the card is presented to Door A, the signal of Wiegand A will be transmitted to the Door A outputs and it will trigger GV-LPR to activate the license plate recognition.
Requirements
- 2-door modules: AS200-2, AS200-2C, AS200-2E, AS200-2CE
GV-LPR equipped with GV-I/O USB Box
After connecting the card reader to Wiegand A, connect the GV-I/O USB Box that is installed on GV-LPR to the GV-AS200 Controller.
- Connect the Door + pin of Door A outputs to the DI 1 pin of GV-I/O USB Box. Then connect the Urgent 1 pin of Door A outputs to the COMA pin of GV-I/O USB Box, as illustrated below. Please note don’t connect any power to the Door A outputs.

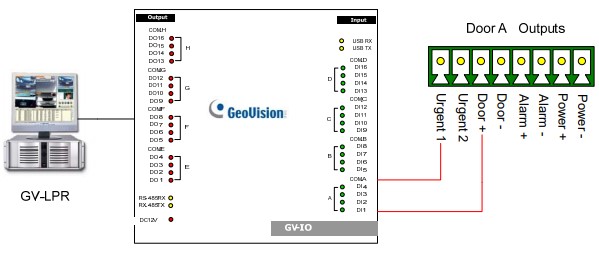

- Screenshot_1.jpg (33.9 KiB) Viewed 2742 times
- Set the Door Relay Switch of Door A to NO.
- It is required to allow the accessibility of Door A for entry and exit.

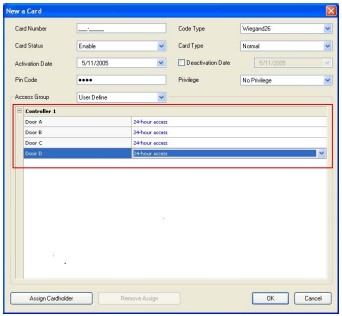

- Screenshot_2.jpg (25.7 KiB) Viewed 2742 times
- To set GV-LPR, follow these steps:
- Set Detection Mode to I/O Detection.

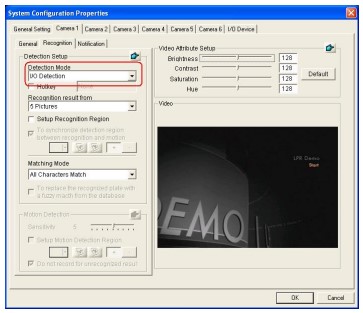

- Screenshot_3.jpg (29.96 KiB) Viewed 2742 times
- Enable and configure Input 1.

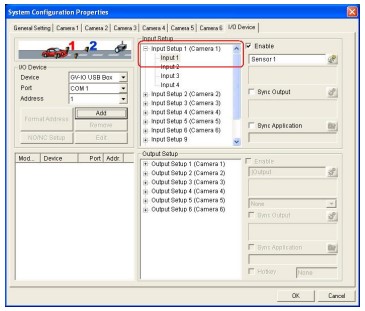

- Screenshot_4.jpg (31.05 KiB) Viewed 2742 times
- Enable and configure the corresponding output, e.g. open a gate or turn on a light.
- Set Detection Mode to I/O Detection.
