[Technical Notice] Accessing GV-IP Cameras from QNAP Surveillance Software

alexhon · Unread post by **alexhon** » September 16th, 2018, 8:35 pm

Article ID: GV3-13-07-01-k
Release Date: 07/01/2013

Applied to
GV-IP Camera V2.07 or later
QNAP VS-2008 Pro VioStor V4.0.1

Summary
This document covers the basic instruction on adding GV-IP Cameras to QNAP surveillance system using ONVIF protocols.

Instruction

Before you start
To allow QNAP to access GV-IP Cameras through ONVIF, you must first change the RTSP port to 554 on the Web interface of the GV-IP Camera before adding the camera.

Start the Internet Explorer browser, and type the IP address of the GV-IP Camera.

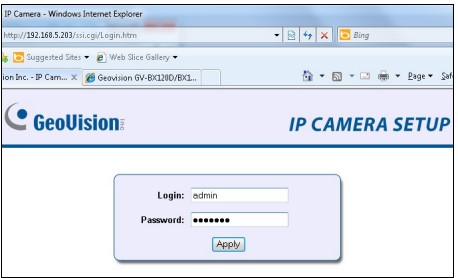

Type the login name and password, and click Apply.

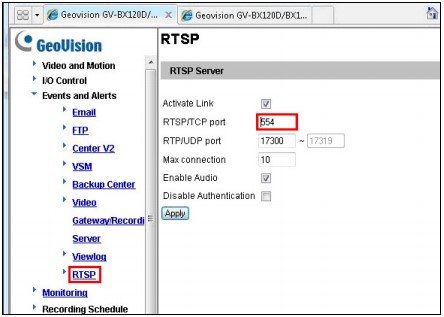

In the left menu, select RTSP under Events and Alerts and change the RTSP / TCP port to 554. Click Apply.


Installation

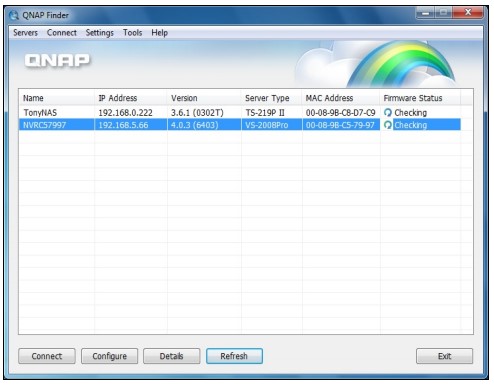

Open the QNAP Finder to search the servers installed with QNAP software.

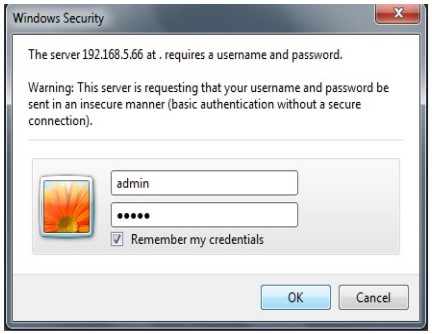

Double-click the desired server and log in by typing the account and password.

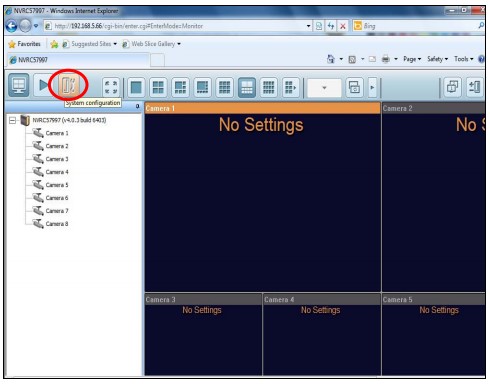

Click the System Configuration button to install a GV-IP Camera.

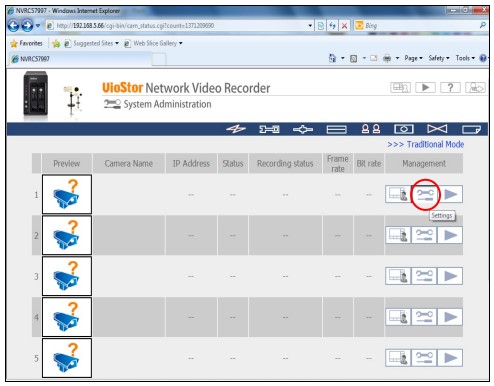

Click the Setting icon.

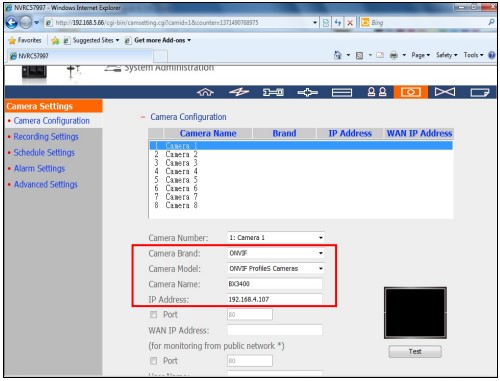

Select ONVIF in the Camera Brand field and ONVIF ProfileS Cameras in the Camera Model field. Also, type the camera name and IP Address of the GV-IP Camera.

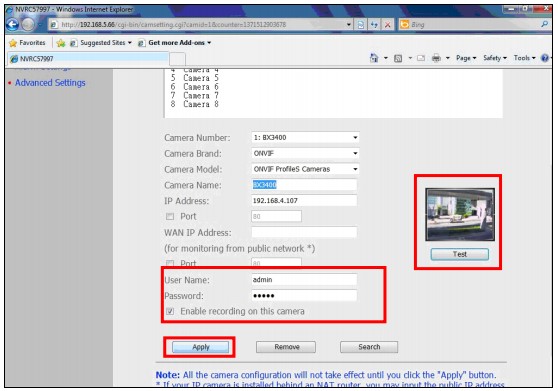

Type the Username and Password of your GV-IP Camera and select Enable recording on this camera. Click the Test button to see if there is live view showing. Click Apply.

On the Camera Settings page, click the Monitor icon.

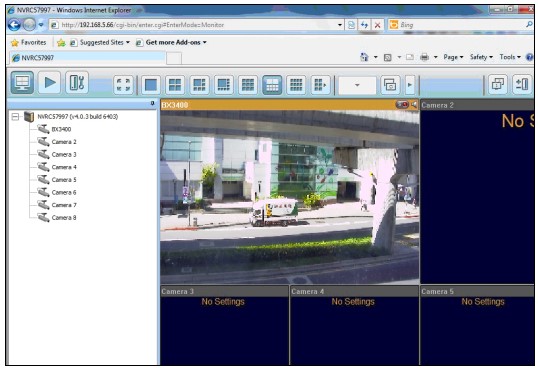

You should see the live view now.


Note: QNAP VS-2008 Pro VioStor does not support audio function.
