Released Date: 06/04/2015
Applied to
GV-AS210 / 2110 Kit: Firmware V1.23
GV-AS410 / 4110 / 810 / 8110 IP Control Panel and Kit: Firmware V1.23
GV-EV48 Elevator IP Control Panel: Firmware V1.12
Symptom
The GV-AS / EV Controllers listed above may not run properly after upgrading to newer firmware. If you are unable to detect the controller in GV-IP Device Utility or GV-Net Module Utility, try restoring the GV-AS / EV Controllers to default settings first. If the problem persists, follow the instructions below to resolve the issue.
Instructions
- Remove the seal on the SD card of the GV-AS / EV Controller, and remove the SD card.

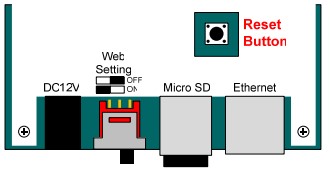

- Press the Reset button on the GV-AS / EV Controller for 3 seconds. The location of the Reset button varies among different controller models.
- Screenshot_2.jpg (46.99 KiB) Viewed 1879 times
- After the rebooting, log in the Web interface of the GV-AS / EV Controller.
- Insert the SD card again.

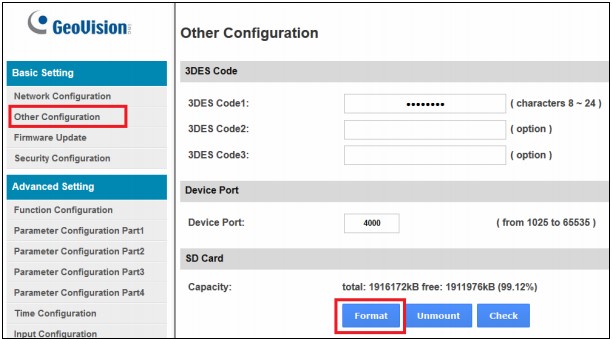

- In the left menu of the Web interface, click Other Configuration and click the Format button under SD Card.
- Screenshot_1.jpg (13.61 KiB) Viewed 1879 times
