Q. What does the Network Status LED light on my GV-OPAL S1 mean?

A.

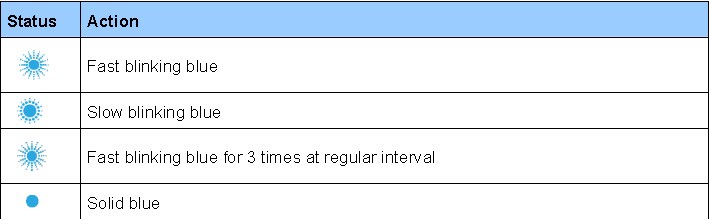

The Network LED light is interpreted as follows:


1. Pairing (Access Point Mode): Slow blinking blue every 2 seconds.
2. Attempting to connect to a WiFi access point: Fast blinking blue.
3. Is connected to a WiFi access point: Displaying solid blue for 10 seconds.

WiFi Disconnection Status
1. Attempting to connect to a WiFi access point (not yet connected to the Internet): Fast blinking blue.
2. Unable to connect to the Internet (but is connected to WiFi access point): Fast blinking blue for times at regular interval.

Pairing Status
a. Receives pairing information from the mobile device: Slow blinking blue disappears.
b. Attempting to connect to WiFi: Fast blinking blue.
c. Unable to receive pairing information from the mobile device: Slow blinking blue every 2 seconds.
