[ Dispatch ] Unable to connect to CenterV2 - 20170224

[AndyChen]

Issue:
Dispatch Server is not connected to Center V2

Patch / Procedure:

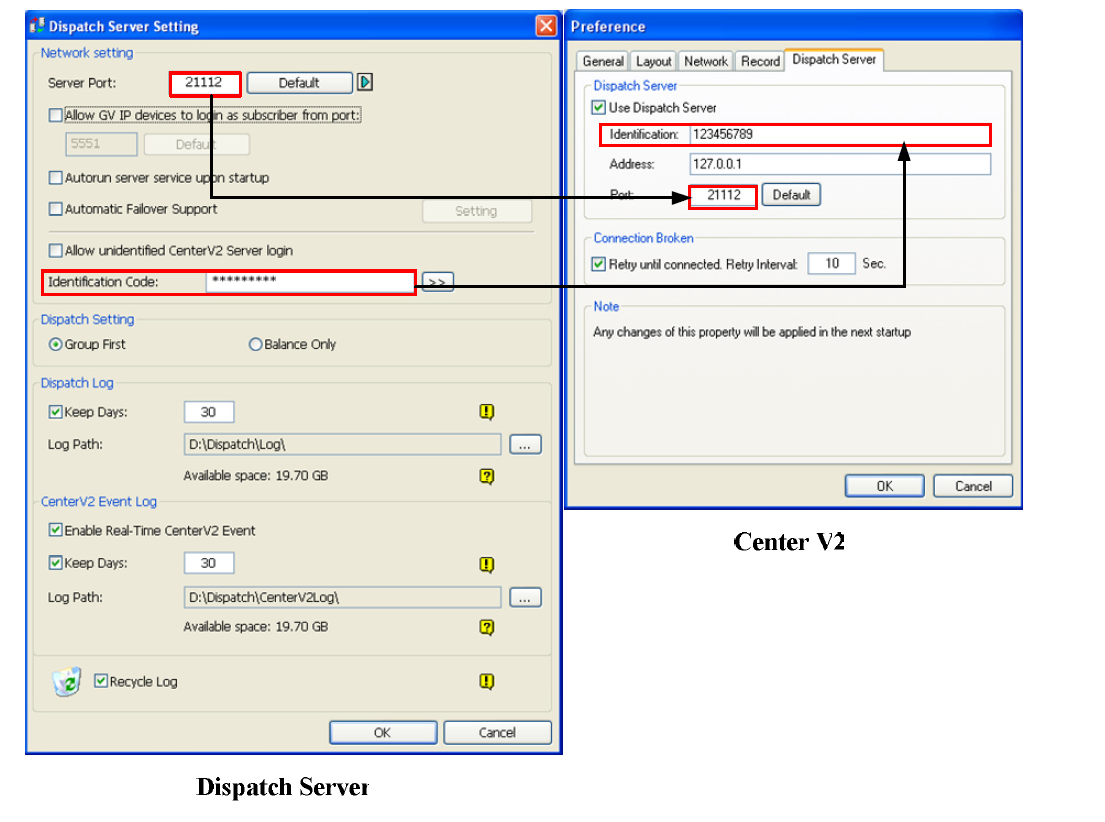

1. In Dispatch, type in correct port number and identification code on the left hand side.
Match dispatch's Identification code and port with CenterV2's preference window on the right hand side.

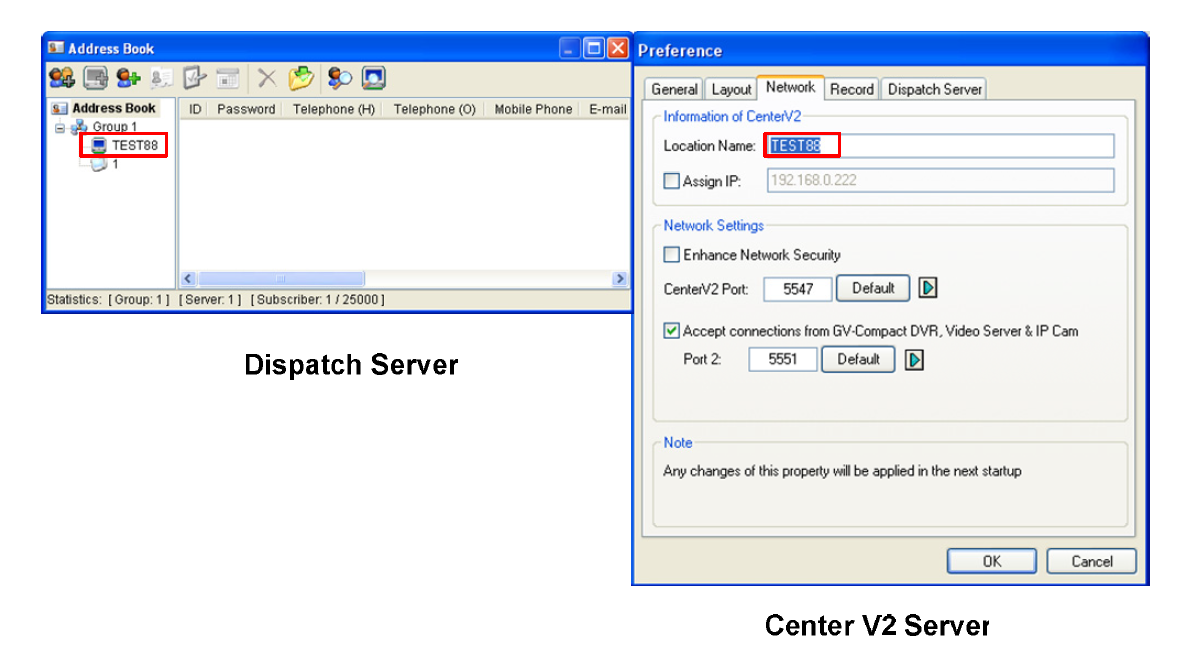

Dispatch's host name also need to matched with CenterV2's Location Name.

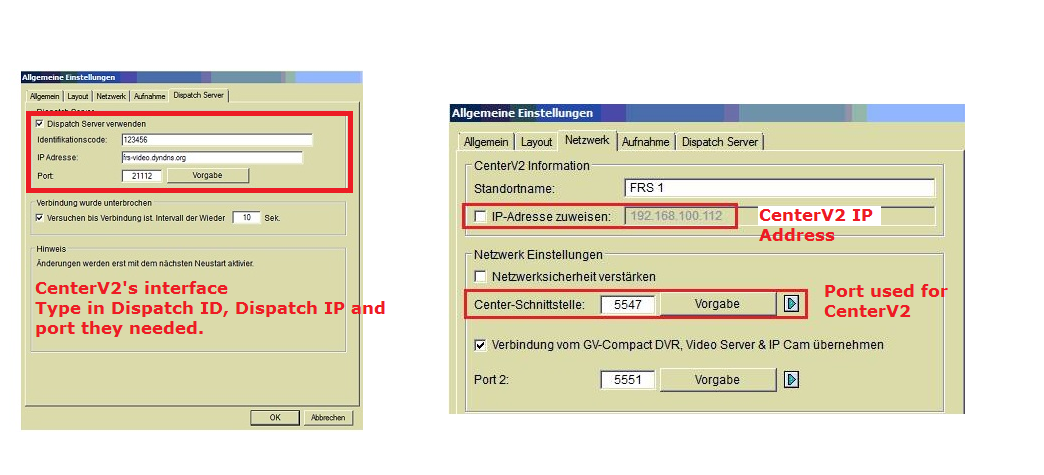

2. In CenterV2, Go to Dispatch Server tag >> Type in dispatch's identification, IP address and port.
Then Go to Network tag >> Define your CenterV2's location name and its IP address


3. Lastly, in VMS or NVR/DVR, go to Network tag >> Enable CenterV2 information and type-in Dispatch IP address, dispatch ID/PASSWORD and port.


Reference:
RE: [ EVS - 201702026011 ] Under Wan, CV2 is unable to be connected to Dispatch Server
